Equipment
The equipment behind
the difficult lifts
One truck, set up so that most jobs can be done without bringing a second machine to site.
Full specifications
Confirmed figures only. If your load sits near a limit, call and we will work it through against the load chart before anyone commits.
Reach envelope
What the numbers mean on site
Crane capacity drops as the boom extends. These are the two confirmed points on the curve — close in, and at full reach.
Indicative diagram showing the two confirmed load points. It is not a manufacturer load chart — intermediate capacities depend on boom configuration, ground conditions and rigging, and are confirmed job by job.
The set-up

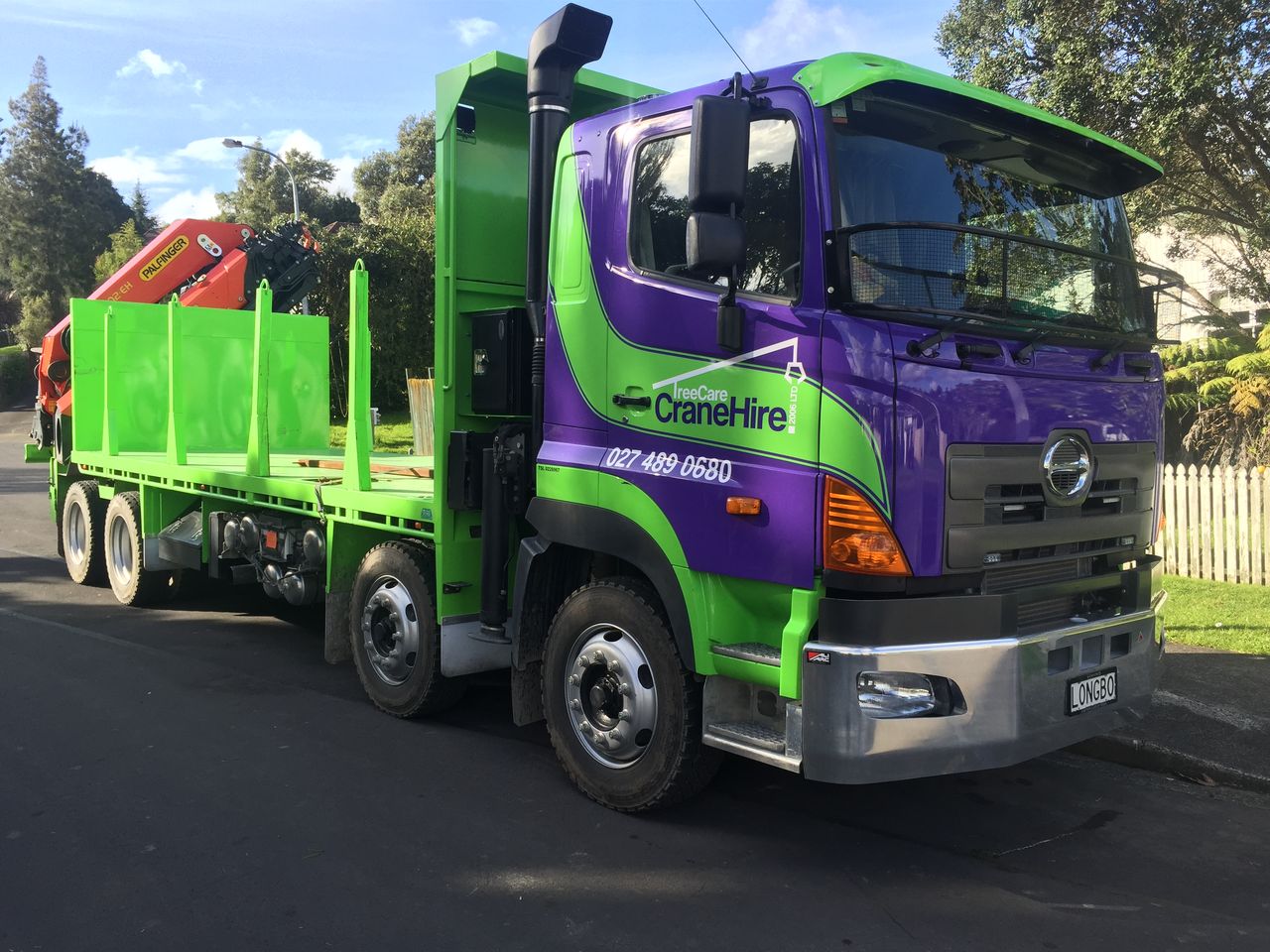

8-wheeler Hino
- 6.3 m flat deck
- 8 t deck carrying capacity
- 20-foot container capability

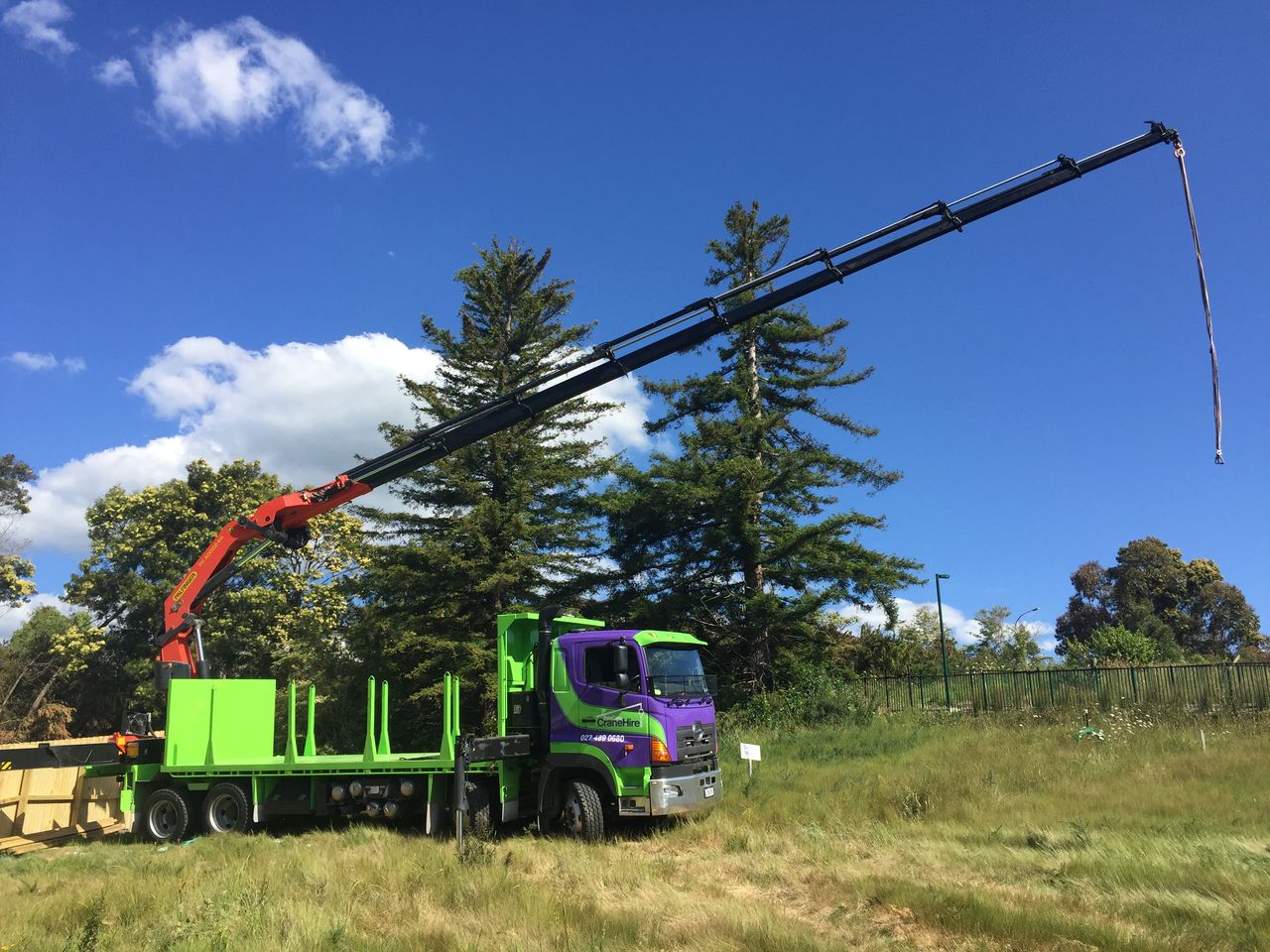

Rear-mounted Palfinger crane
- 7.5 t at 3.5 m
- 600 kg at 25 m
2.5 t cable-lifting winch
Useful for lifting over structures and working with difficult terrain or inclines.
Cherry-picker bucket
A stable working platform on uneven ground, with reach up to 27 m.
Certification & insurance
Certified, insured, tested
- Certified operator
- Certified machinery
- Public liability insurance
- Certified lifting gear
- Tested load-restraint equipment
Documentation can be provided on request for site inductions and main-contractor pre-qualification.
Not sure if it will reach?
Tell Terry where the truck can stand and where the load has to go. That is usually enough for a straight answer.
